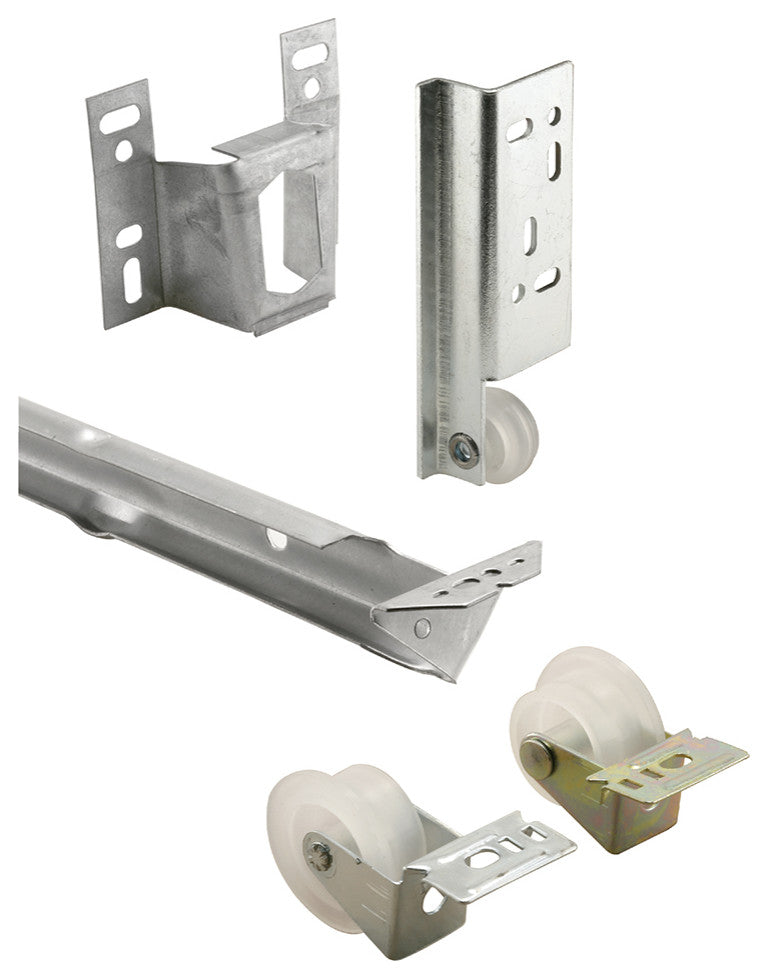

This kit is constructed of steel and plastic components and it includes all the parts necessary to repair one wooden drawer track system. The track is constructed of a 22-5/8 in. galvanized steel monorail that can be cut down to size, the roller assemblies are constructed of steel brackets with plastic wheels, and the guide and back plate are constructed of galvanized steel. The roller assemblies are used to replace worn or missing guide buttons, allowing the drawers to glide easily when opening and closing, while at the same time preventing wear on the cabinet�s face frame or drawer opening. These roller assemblies install into the inside lower left and right corners of the drawer face opening with necessary fasteners provided within each kit. This track system has a max load rating of 20 lbs., and it is used by many to replace missing or malfunctioning drawer track hardware.
Used to replace damaged or missing drawer tracks and guides
Features a 22-5/8 in. track length
Universal tri roller system includes 2 rollers, a back plate, center track and roller
Constructed of both galvanized steel and mold injected plastic components
Requires a 1-1/4 in. top or bottom clearance for proper operation
Has a maximum safe load of 20 lbs. for the tri roller system

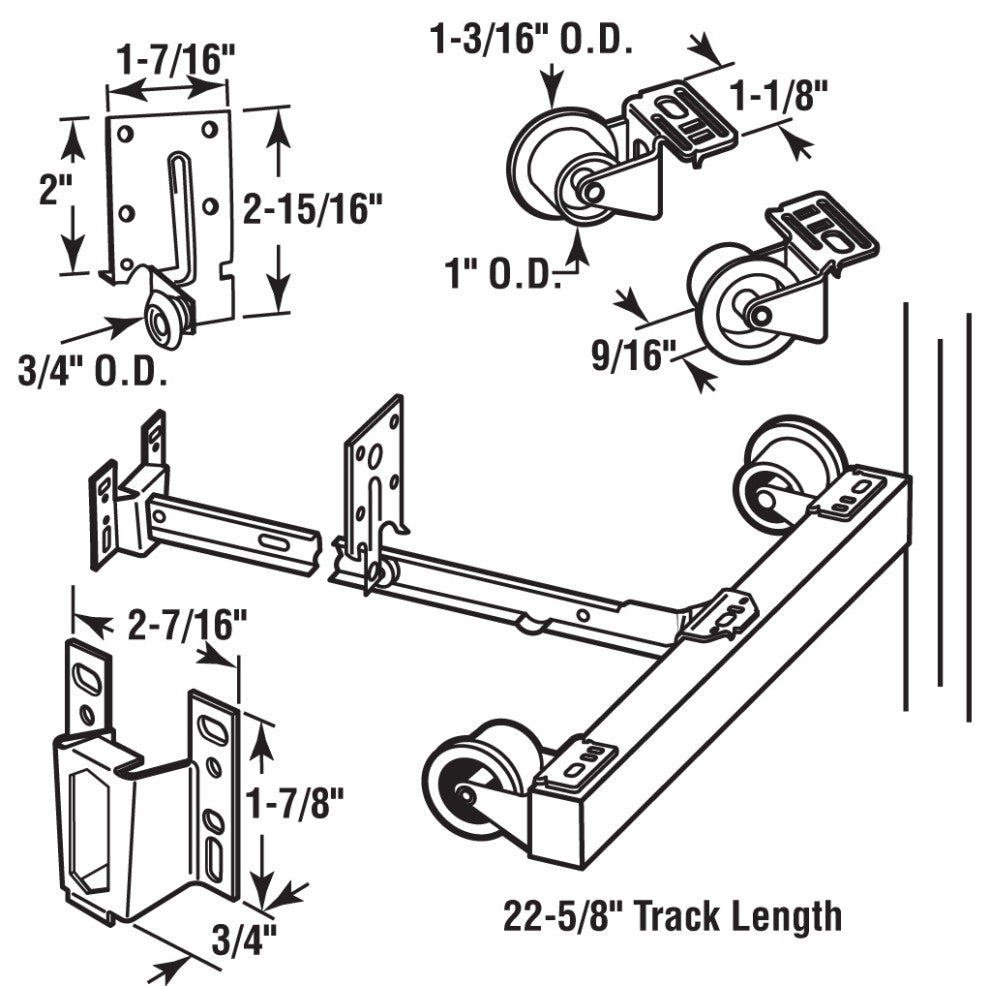

For further dimensional information, please see the line drawing
