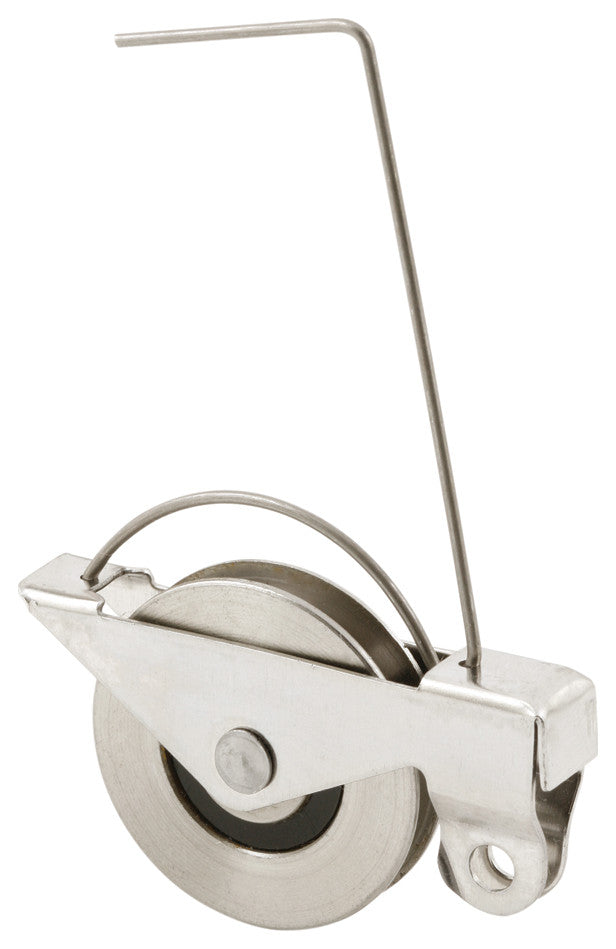

This stainless steel Arcadia style roller assembly is used by Arcadia doors as well as a variety of other patio door manufacturers. The complete assembly, wire spring and roller are stainless. It has a stainless wire tension spring and comes with a 1-1/4 in. stainless steel ball bearing roller and fits onto the Prime-Line part B 569 corner insert. It is often used on the top as well as the bottom of the sliding screen door. See the Prime-Line parts B 515, B 610, B 714, B 736 and B 821 for similar spring tension rollers.
Used by Arcadia and a variety of other sliding screen door manufacturers
Stainless steel wire tension spring
1-1/4 in. diameter concave stainless steel roller
Stamped Stainless steel body
Will not rust
Used on the top of bottom of the sliding screen door
No tools required for installation

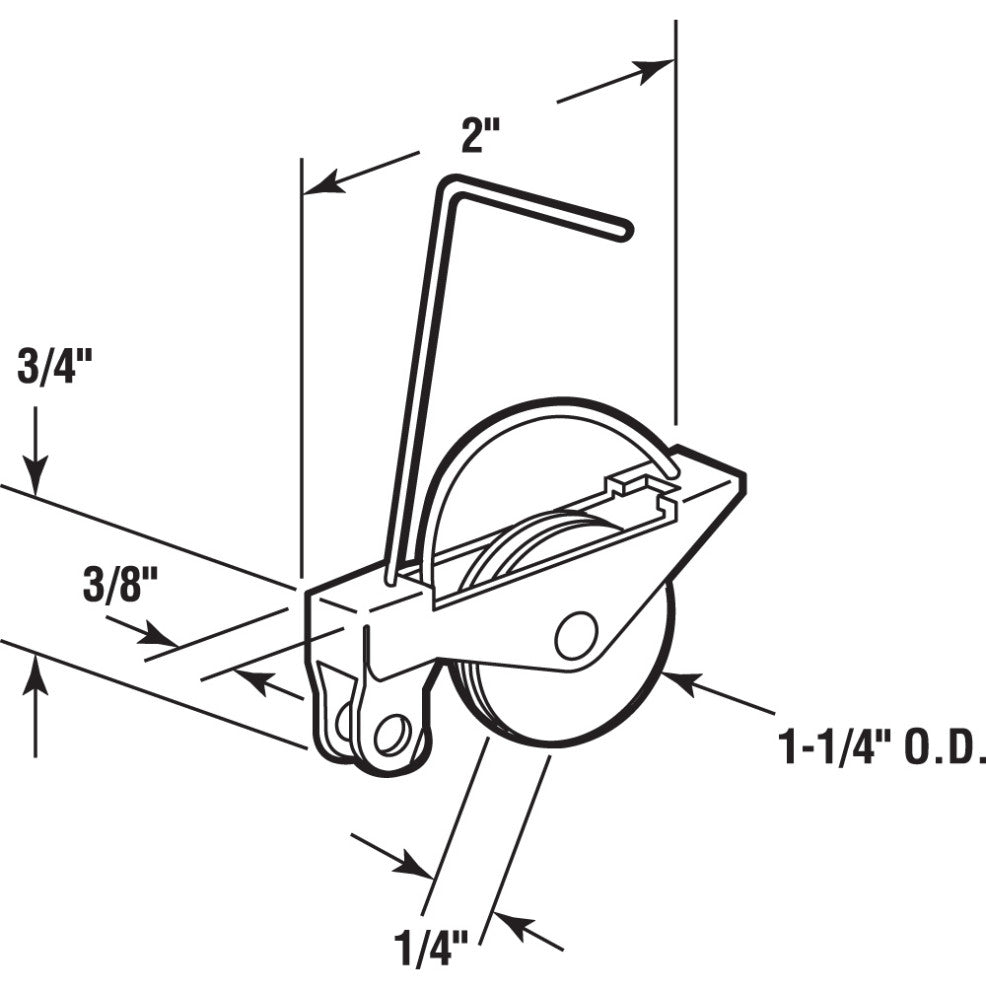

For further dimensional information, please see the line drawing
