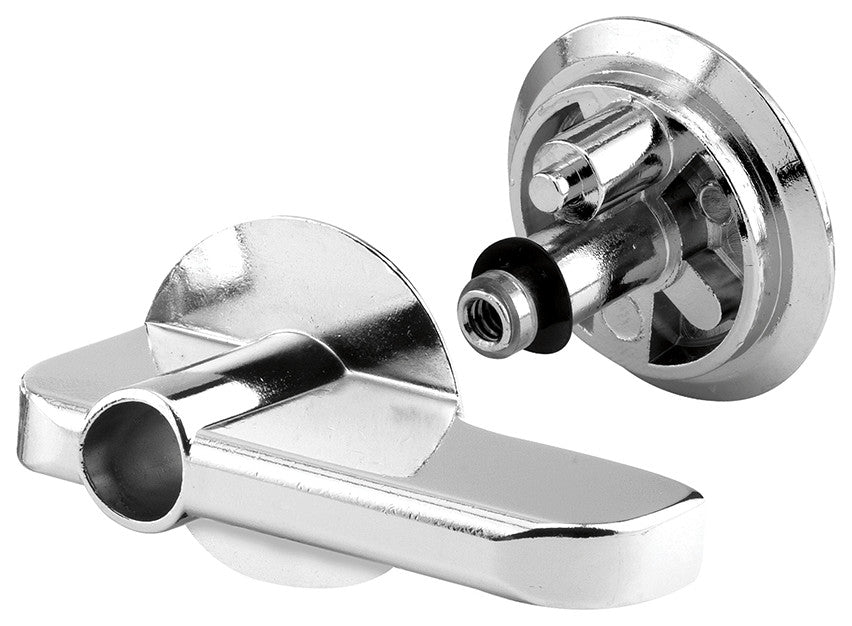

This ADA compliant lever set is constructed of zinc alloy (cast Zamak) and comes in a polished chrome plated finish. It is designed for use with a concealed latching mechanism, and it assembles easily with a security fastener. This knob set has a 1-5/8 in. outside diameter, an overall lever length of 3 inches and it features a flat, slotted emergency-access knob on the exterior. Lever sets like these are used to replace broken and missing lever and knob sets of concealed latches. This lever set is used by Global for use with steel doors, and it is easy to install. The T-27 Torx security fastener included with this item features a tamper-resistant 6-lobe security drive with center pins.
Used to replace broken or missing knob sets of concealed latches in 1 in. thick partition doors. For use as a privacy lock in toilet partition stalls
Outside diameter of 1-5/8 inches with an overall lever length of 3 inches
Chrome plated finish
Zinc alloy (cast Zamak) construction
The fastener included with this kit features a tamper resistant T-27 Torx security drive

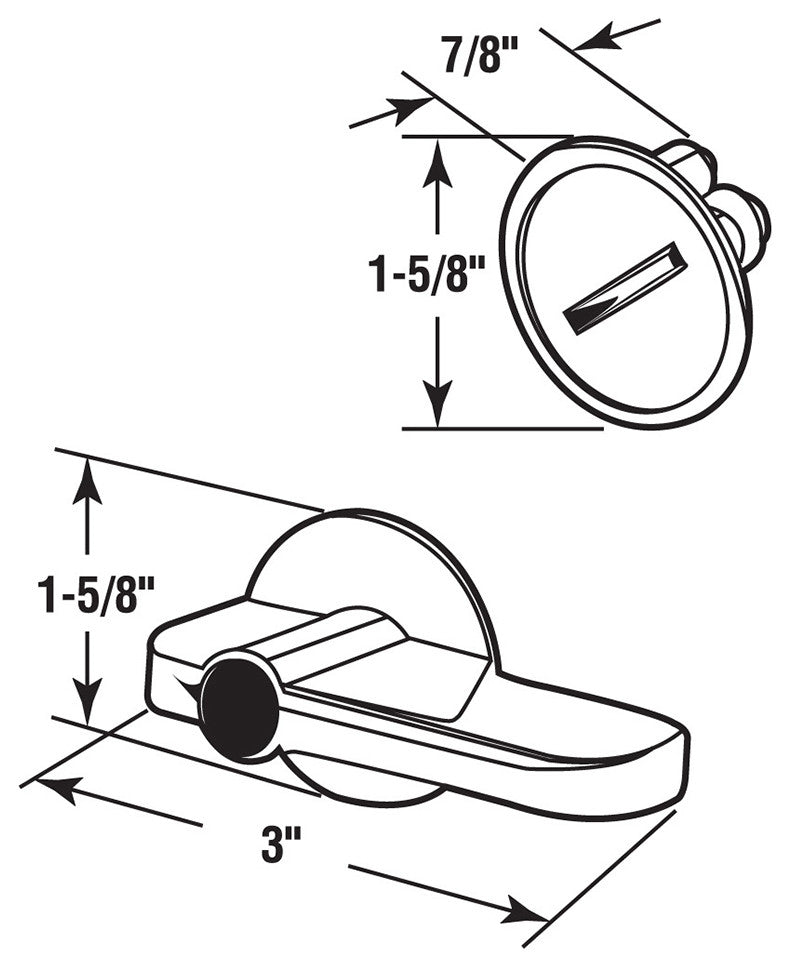

For further dimensional information, please see the line drawing
