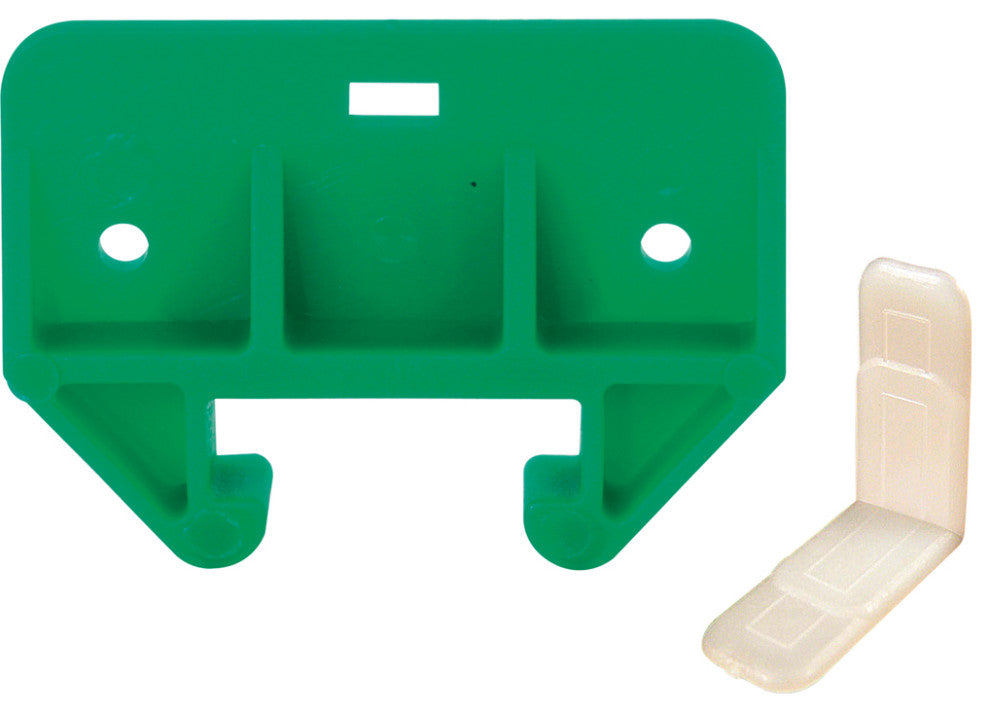

This kit includes 2 drawer track guides that are constructed of plastic and come in a green color. These guides are used to replace damaged or missing drawer guides that have a 1-1/8 in. wide x 5/16 in. tall opening in the plastic guide. These guides are designed to fit 1-1/8 in. x 9/32 in. tracks to provide drawer alignment and smooth operation. The kit also includes white plastic saddles that are used to replace worn or missing guide buttons. These plastic saddles allow the drawers to glide easily when opening and closing, while at the same time preventing wear on the cabinetï¿1⁄2s face frame or opening. The saddles install into the inside lower left and right corners of the drawer face opening with the fasteners provided within each kit. This kit includes enough parts to repair 2 drawers (with matching track and guide dimensions).
Used to replace damaged or missing drawer guides that require a 1-1/8 in. x 5/16 in. guide opening
Is 1-1/8 in. x 5/16 in
Mounts to the back of the drawer
Green molded plastic with white saddles
Includes 2 guides and 4 side saddles
Mounting hardware included
A Phillips head screwdriver is required for Installation

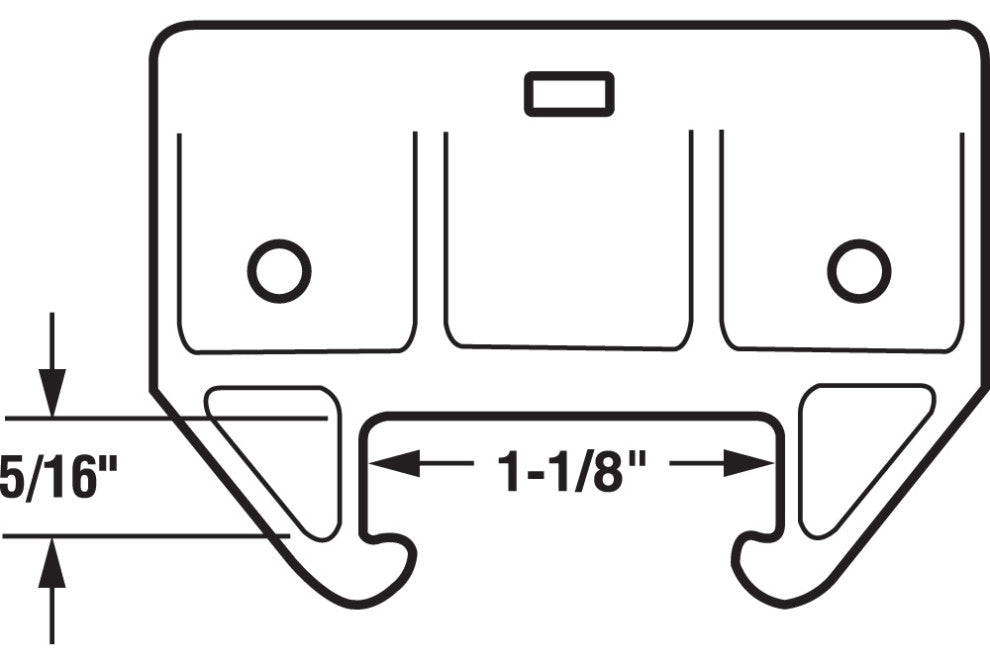

For further dimensional information, please see the line drawing
