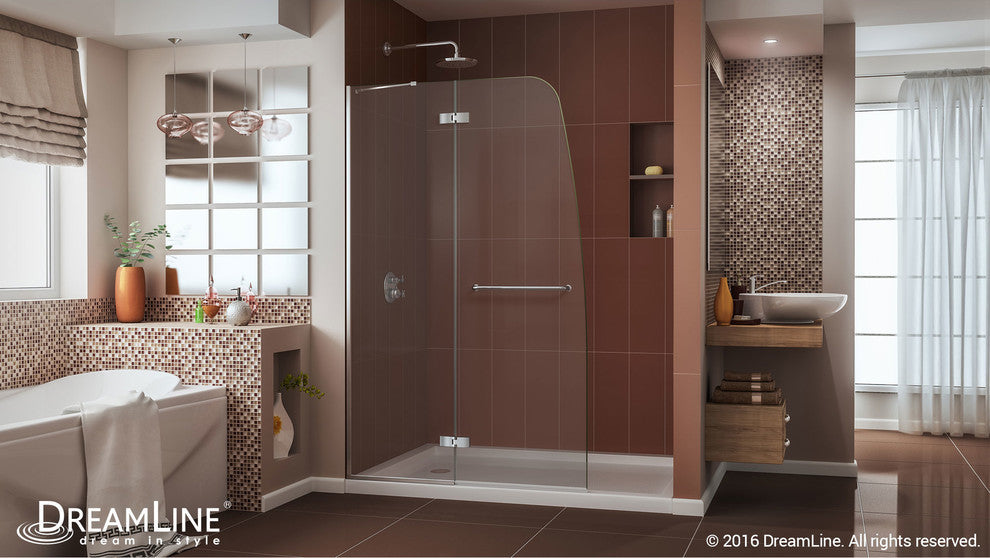

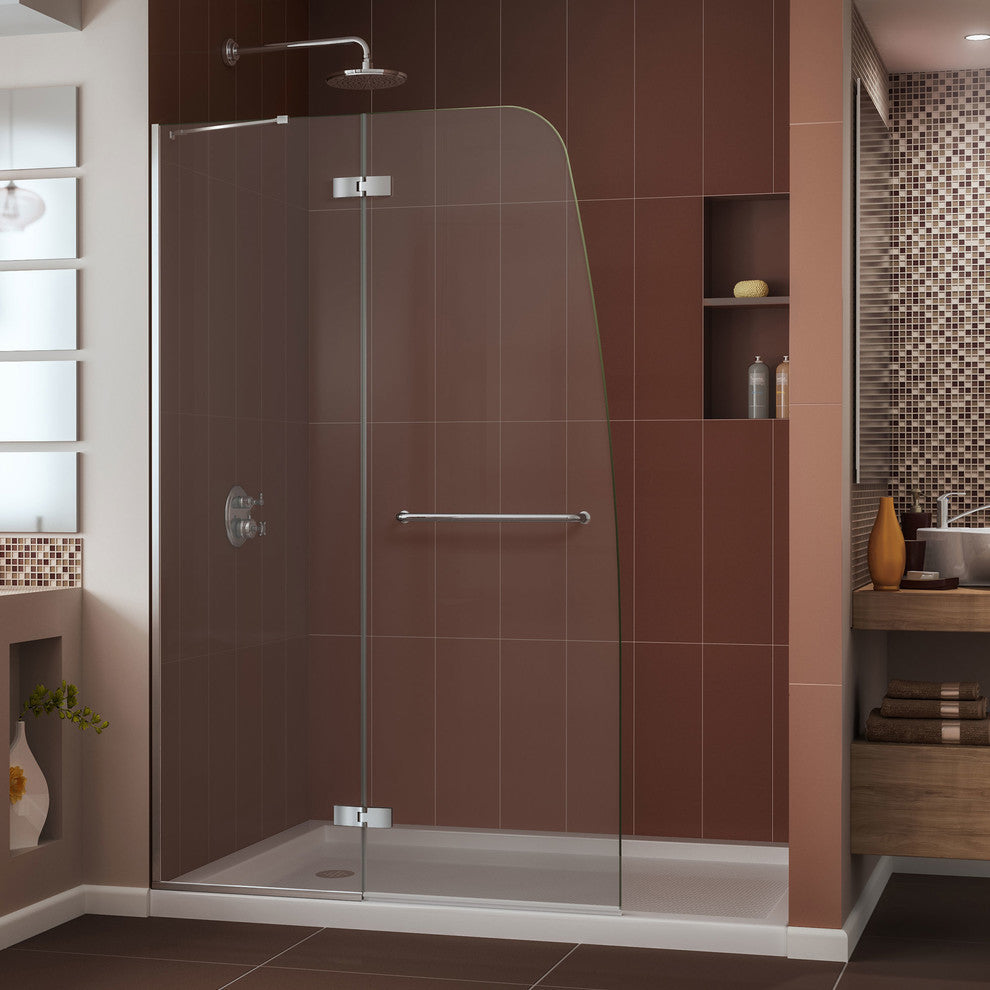

This kit combines an Aqua Ultra shower door with a coordinating SlimLine shower base. The unique and sophisticated curved silhouette gives this door an attractive European flair, while an innovative u-shaped wall profile provides an easy installation. A SlimLine shower base completes the transformation with a modern low profile design. DreamLine shower kits provide the perfect solution for a bathroom remodel or tub-to-shower conversion project.

Items included: Aqua Ultra Shower Door and 34 in. x 60 in. Single Threshold Shower Base
Overall kit dimensions: 34 in. D x 60 in. W x 74 3/4 in. H

Aqua Ultra Shower Door:

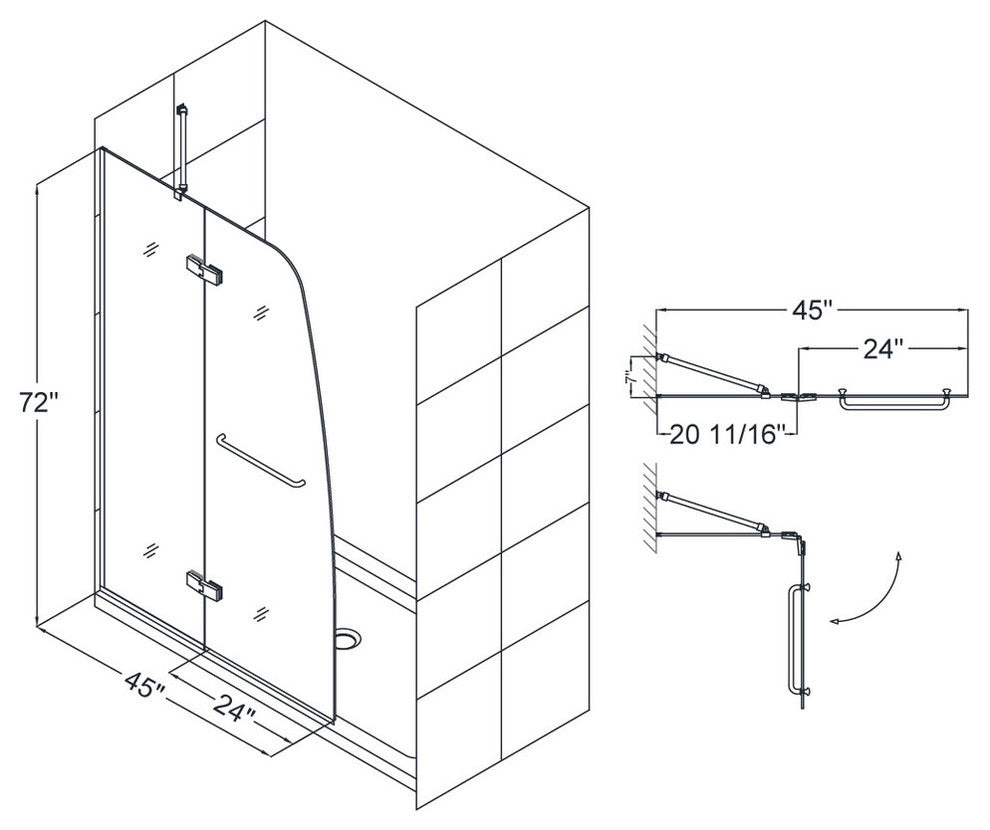

45 in. W x 72 in. H
Chrome hardware finish
Finished walls are required for accurate shower opening width measurement
Frameless glass design
Model consists of one hinged door and stationary side glass panel

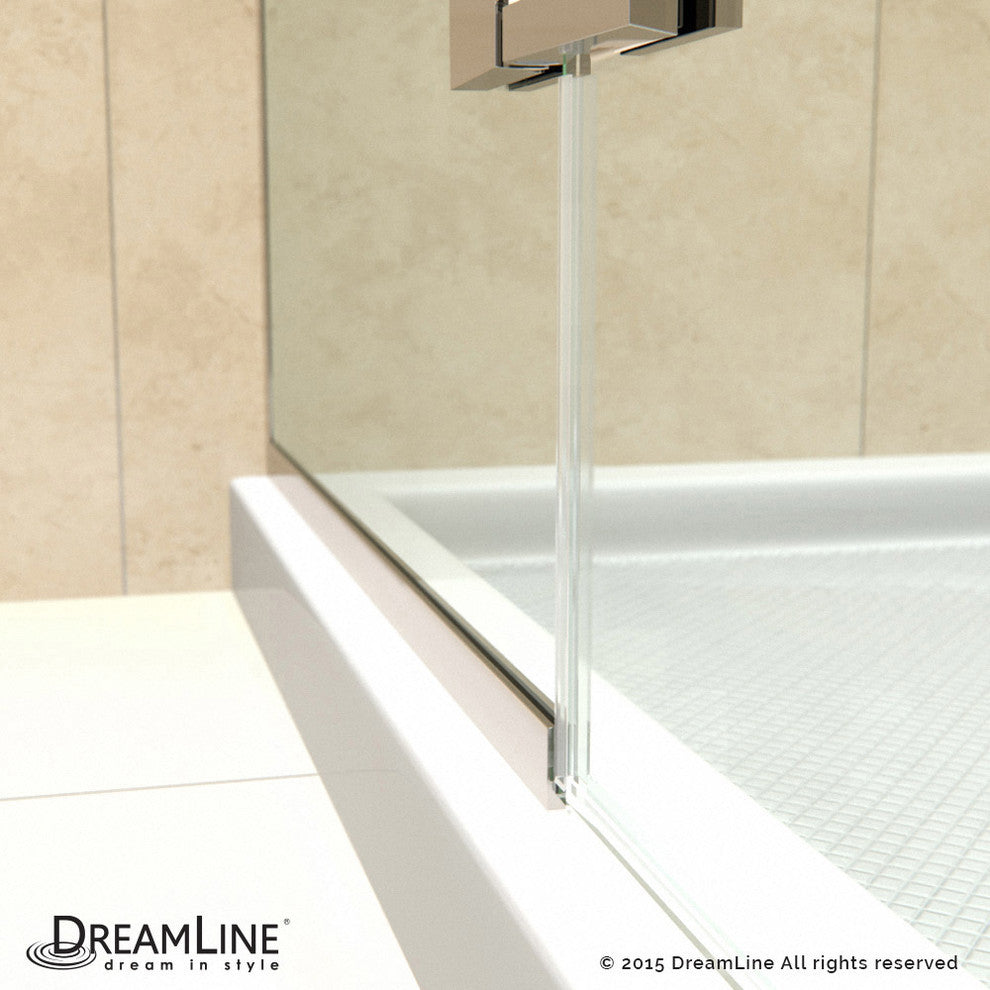

Anodized aluminum U shaped wall profile allows 1/4 in. out-of-plumb (vertical) adjustment
Reversible for a right or left door opening (door has a convenient towel bar)
Quality 5/16 in. (8mm) thick ANSI certified clear tempered glass
Stationary panel: 20 11/16 in.
Wall studs or other reinforcement behind finished walls required for hinge installation
Professional installation recommended

34 in. x 60 in. Single Threshold Shower Base:
High quality scratch and stain resistant acrylic
Slip-resistant textured floor for safe showering
Integrated tile flange for easy installation and waterproofing
Fiberglass reinforcement for durability
cUPC certified
Drain is not included
Left drain configuration

Limited lifetime manufacturer warranty

Note: To minimize possible water escaping outside the bathing area, position the shower head opposite of the door opening aimed at the tiled walls, fixed glass panel or straight down towards the shower floor
