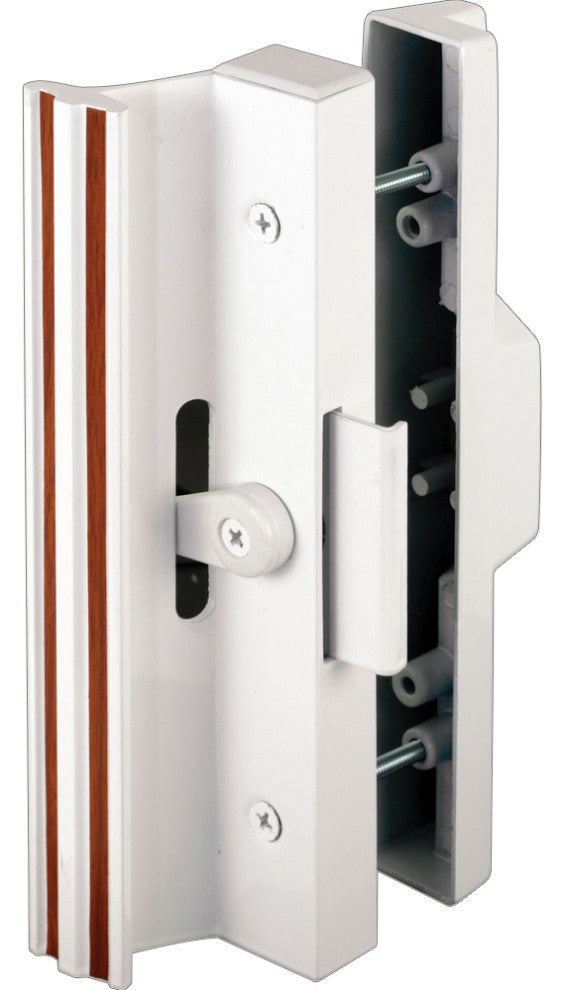

This white patio door handle is a surface with clamp latch style. Often found on older style patio doors, it is mounted on the door''s inside frame and the clamp latch latches onto an extrusion (astragal) on the jamb. It has 2 in. handle height extruded aluminum inside handle. The clamp has a 1/4 in. profile and 1/2 in. projection when in locked position. The outside handle is a mill finish, low profile non-keyed handle. To key this unit order Prime-Line part E 2000.
Used by a variety of sliding patio door manufacturers
Surface mount, clamp style Sliding door patio handles
4-15/16 in. on hole center mounting.
Extruded Aluminum painted black
Not a keyed unit, use Prime-Line part E 2000 to make a keyed unit
Mounting hardware included
A Phillips head screwdriver is required for installation

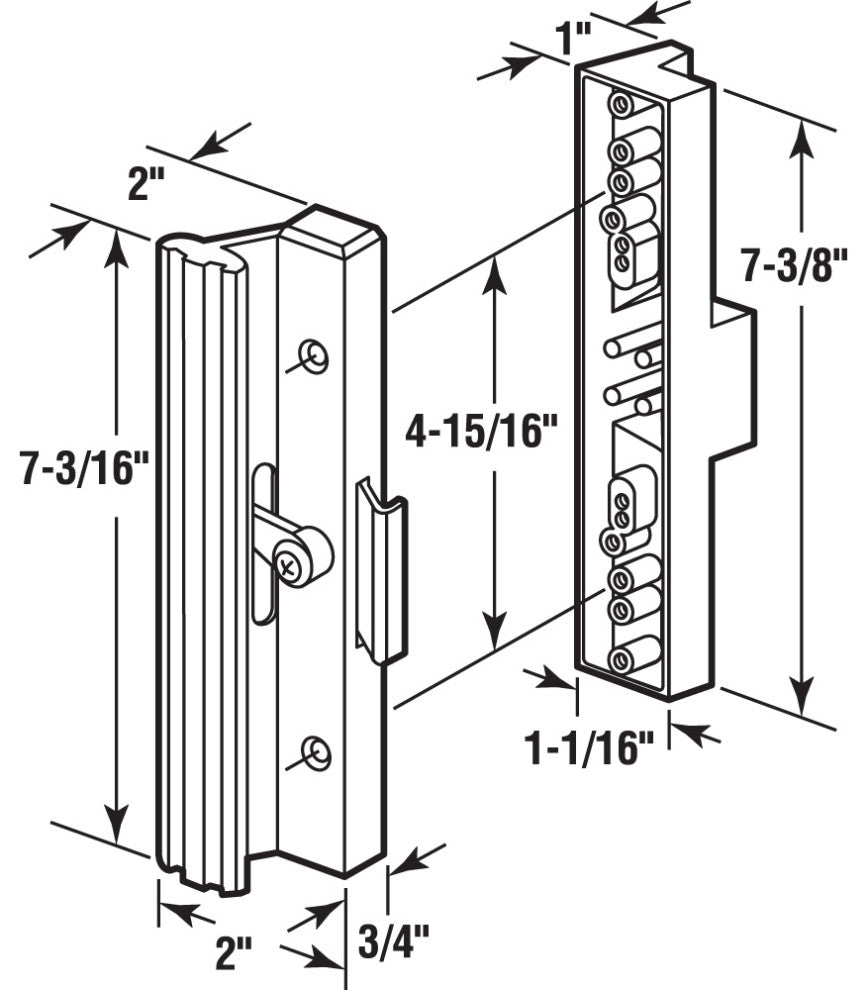

For further dimensional information, please see the line drawing
