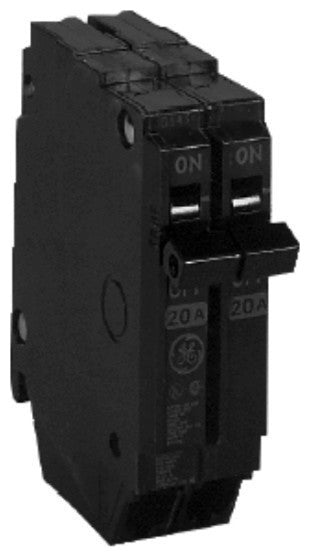

THQP breakers are a smaller, smarter solution for today''s cost- and quality-conscious contractors and homeowners. Half the width of standard breakers, they allow use of smaller load centers and for maximum savings of space and money. GE is the only manufacturer that gives you this cost advantage without sacrificing flexibility. THQP breakers are one-half the width of standard GE breakers but identical in design. They are available from 15 to 50 amps and in single and two pole construction.


• Category: Feeder Plug-in Circuit Breakers

• Trip Style: Non-Interchangeable

• Frame Type: Q-Line

• Amperage: 20A

• System Voltage: 120 Vac , 120/240 Vac

• Poles: 2

• Trip Function: LI

• Continuous Current Rated: Standard

• 120 Vac Interrupting Rating: 10 KAIC

• 120/240 Vac Interrupting Rating: 10 KAIC

• Suitable for Reverse Feed: Yes

• Wire Range (Cu/Al): 14-8 kcmil / 12-8 kcmil

• Product Line: Q-Line (Plug-In)

• UL File #: E11592

• Long Time: Fixed

• Instantaneous: Fixed

• Protective Relays: No

• Current Metering: No

• Special Markings: HACR

• GSA Compliance: Yes

• GO Schedule: 138A.
