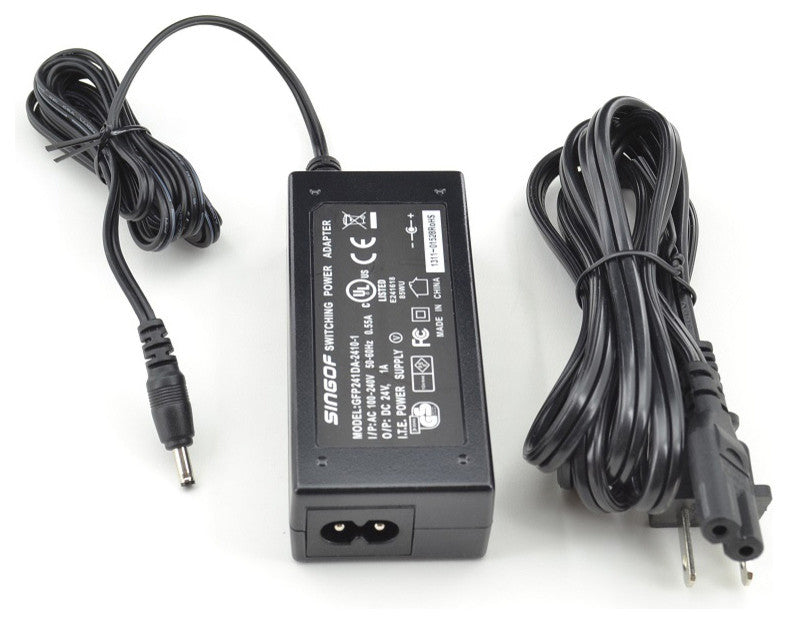

Lightkiwi 24 Watt Power Supply for Under Cabinet Lighting deliver power and efficiency to your Lightkiwi Modular LED Under Cabinet System.

Length of Power Supply Cables

4 ft 8 inch (From Transformer to Power Plug)
4 ft 10 inch (From Transformer to DC Connector)
Link up to...

Lightkiwi LED Under Cabinet Lighting Power Requirement Chart
Item # Power Source 6 inch Modular LED Under Cabinet Lighting Panel (1.8 Watt) 12 inch Modular LED Under Cabinet Lighting Panel (3 Watt)
W3329 12 Watt Power Supply 6 Panels (10.8 Watt) 4 Panels (12 Watt)
R3816 24 Watt Power Supply 13 Panels (23.4 Watt) 8 Panels (24 Watt)
B4121 36 Watt Power Supply 20 Panels (36 Watt) 12 Panels (36 Watt)
H1386 40 Watt Dimmable Transformer 22 Panels (39.6 Watt) 13 Panels (39 Watt)
R5710 96 Watt Dimmable Transformer 53 Panels (95.4 Watt) 32 Panels (96 Watt)


100-240V AC to 24V DC Power Adapter

Input
AC 100-240V
50-60Hz
0.55 A
Output
DC 24V
1 A
Certifications

UL
CE
TUV
PSE
GS
FCC

Hardwire Installation
If you plan to use wall dimmer switch, you need to do hardwire installation with dimmable transformer instead of the included power supply which plugs into wall outlet, due to the voltage difference between the wall dimmer switch (110V) and LED light panel (24V).

If not used with wall dimmer switch, included power supply can be used to do hardwire installation but if dimmer switch is needed, 24V dimmer switch is required.

Power Supply Start Up time
Depends wattage of power supply, the start up time may differ. Please use matched wattage of power supplies for best result.
