A furniture sliding door hardware system for double doors. All accessories included. Ideal for kitchen cabinets, bathroom vanities and more. Rail can be extended by purchasing an extension rail kit.
•  Hardware Only, does not include doors
•  Complete Sliding door hardware kit for double furniture doors with all fittings
•  Manufacturer''s Model No.: 5APD10911

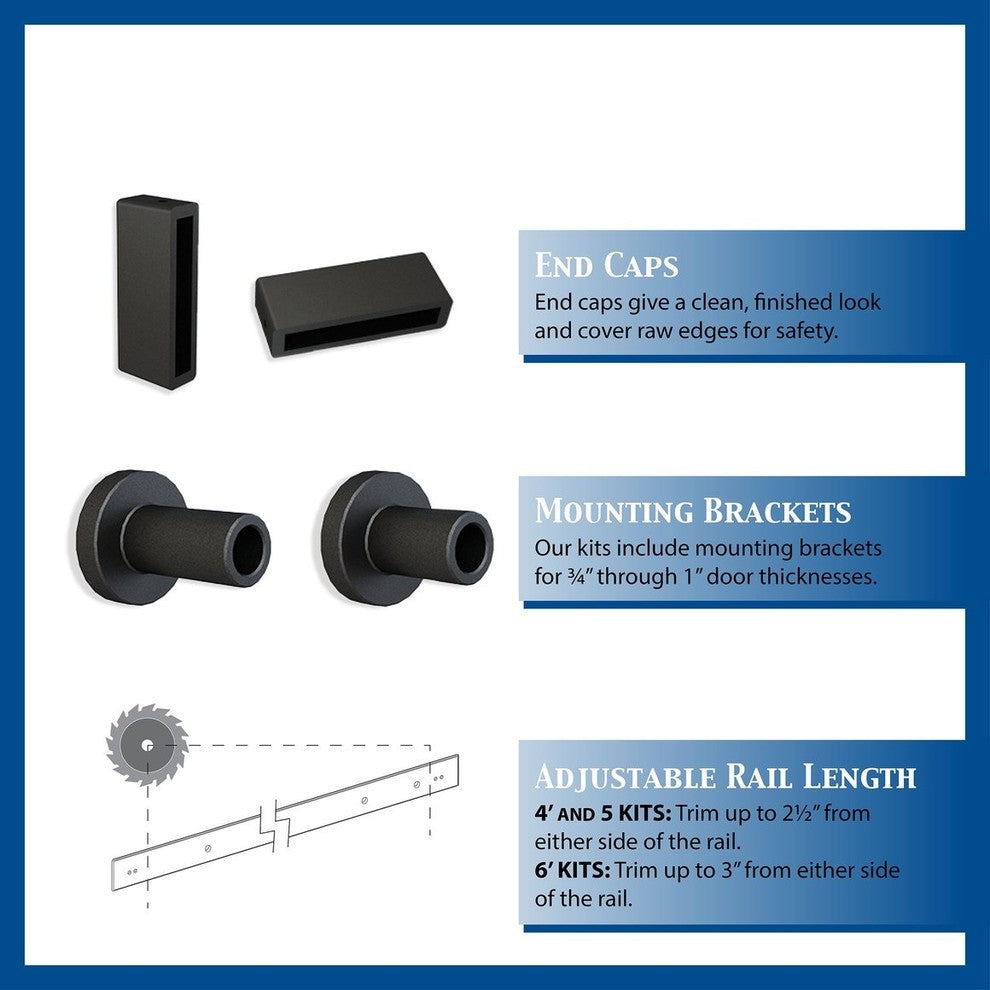

•  48 inch Rails are field trimmable to 43 inches

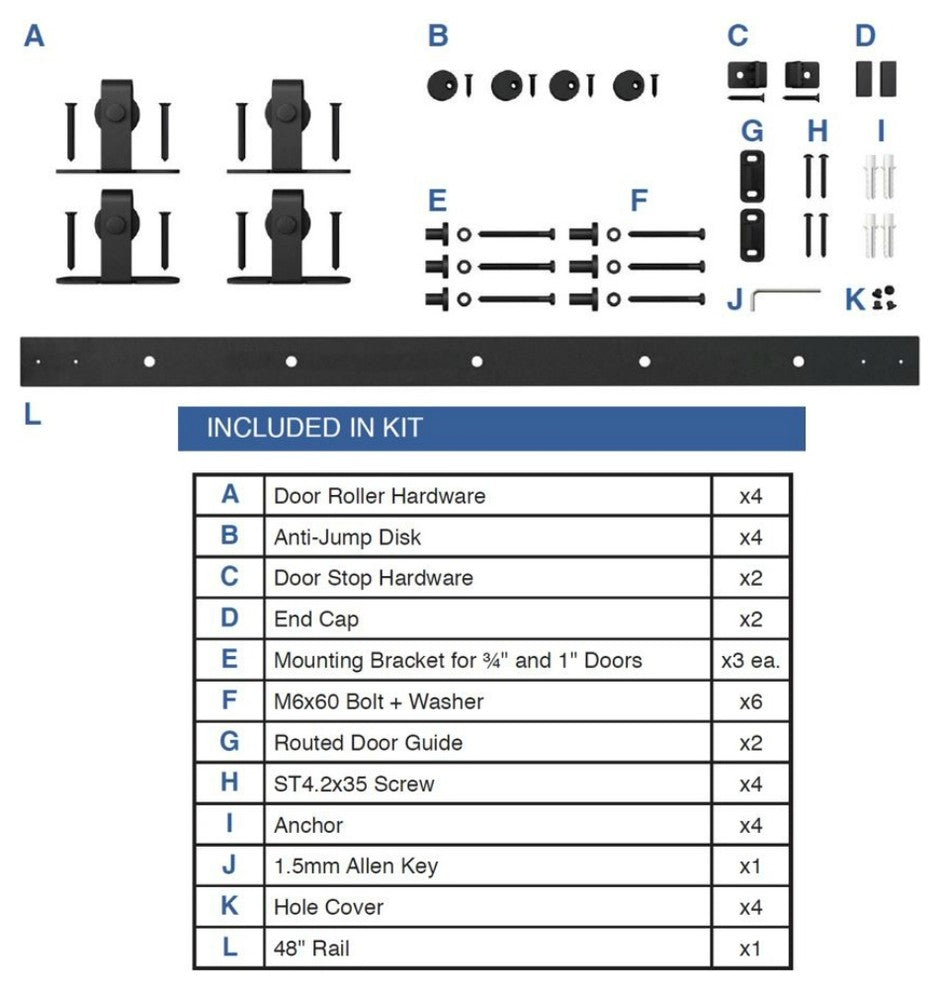

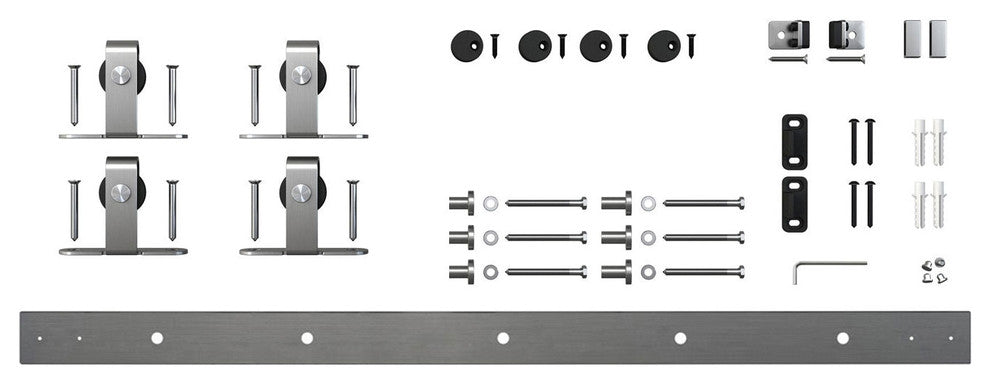

•  Kit includes: Rail 1 x 48 long, 3 Mounting Brackets, 4 Door Rollers, 2 Door Stops, 4 Anti-jump Discs, 2 Metal End Caps, 2 routed Type Floor Guide and mounting Hardware
•  Rails have 16 inches Hole Spacing
•  Wheel Diameter 1-1/2, Mounting Brackets are 1 Projection and 1 Diameter at Base
•  Rail 1 wide x 1/8 thick

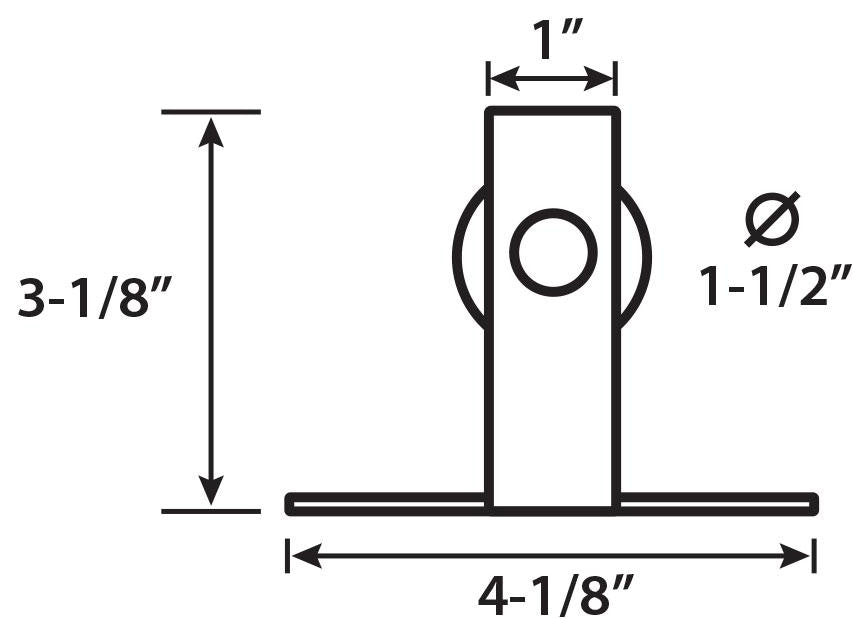

•  Roller Overall Height 3-1/8 x 4-1/8 Wide at Base
•  Maximum door weight 44 lbs. total (22 lbs. each door)
•  4 ft. rails Accept 2 Doors Up to 12 in. Wide each
•  Rollers sit approximately 3-1/8 Above Door
•  Rollers sit approximately 1-5/8 Above Rail
•  For Wood Door Thickness to 1 (choice of mount brackets included depending on door thickness)
•  Additional 4 foot Rail Extension kit available Model No. 5APD10783
•  Door rollers made of polyoxymethylene thermoplastic (POM) which provides low friction, high stiffness, excellent dimensional stability and smooth, whisper quiet operation
