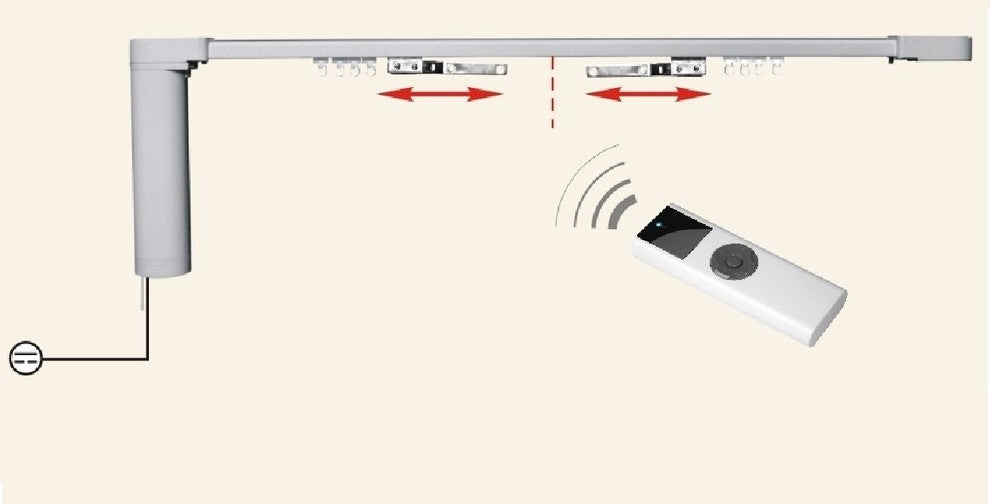

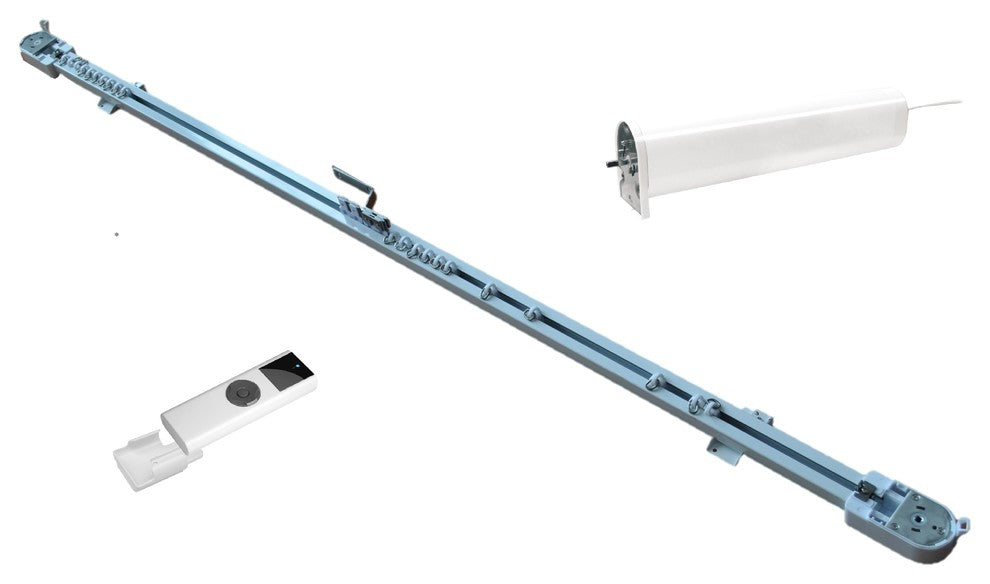

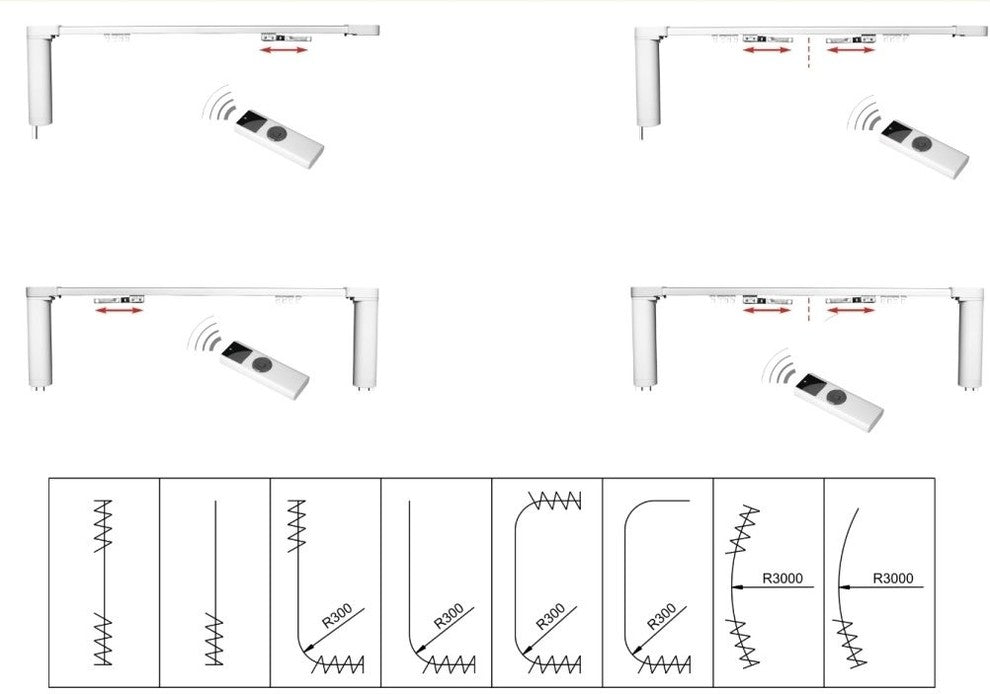

This motorized curtain track system is designed for straight line windows, bay windows, 90 degree corner windows, and any custom curved windows. The CL200BT system consists of a remote, mount brackets, toothed belt drive, curtain carriers, motor, and selected size straight track. METechs offers 2 curved track options (sold separately) to choose from; which option you need depends on your window setup. The curved tracks come in 90 degree and 135 degree curves with a 20?? (500mm) radius. • Curved track sections are not included in this kit and need to be ordered separately.•  The 135 degree curved track works for most bay windows and requires this straight track kit and two 135 degree sections. The 90 degree curved track works for corner window applications and requires this straight track kit and one 90 degree section. The motor power cord is about 3ft long and is designed to be plugged into your wall outlet. The power cord may also be hard wired into your electrical system if needed. The motor can be mounted on the left or right side. It can be operated by remote or timer, wall switch, any dry-contact relay controller, smartphone with an add-on hub, and voice-controlled by Google assistant or Amazon Alexa with an add-on hub (see our other Houzz listings for timer and wall switch or contact METechs for the optional hub).



Features



Powered by 24V/DC or 120V/AC

Automatically remembers the two end positions, no limited switch setup

Motor will intelligently continue to finish opening/closing draperies when opening/closing draperies by hand

It can be operated by remote, timer, wall switch, and any other controller with dry type contacts

Can be operated by hand when power is off

Overload or jam protection



Specifications



Operation voltage: 24VDC or 110VAC to 240VAC

Output power:
